Terracotta Rainscreens

Terracotta rainscreen systems combine high-quality terracotta cladding with a pressure-equalized cavity wall system, offering significant advantages as an advanced rainscreen façade solution. This system is both ventilated and pressure-equalized, utilizing ship-lapped open joints and a comprehensive drainage system. This design ensures equalized pressure between the inside and outside of the terracotta panels, preventing water from penetrating the building envelope, thereby protecting the structural wall and saving energy.

Benefits:

Ventilated Curtain Wall System

Protects the structural wall from adverse weather, extending the building's lifespan.

Moisture is carried away by the airflow behind the panels, maintaining a dry cavity and eliminating mold and mildew.

Provides thermal benefits that reduce energy consumption.

Suspended Facade System

Allows for fast installation and easy replacement of single panels without removing the entire stack.

The mortar-free system can be installed in almost all weather conditions.

Customizable design to fit the specific needs of different projects.

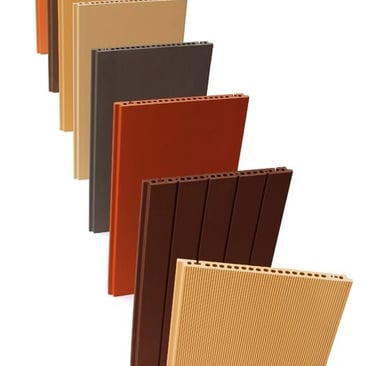

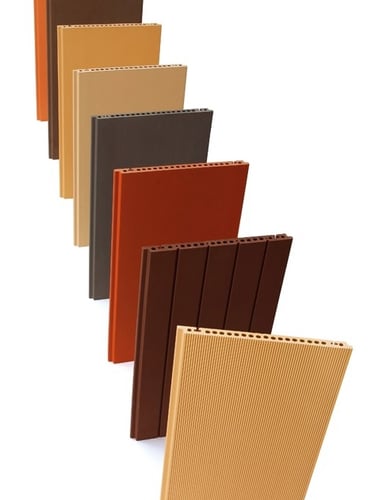

Terracotta Facade Panel

Rich colors and shades are created by high temperatures in the firing kiln, resulting in natural and long-lasting finishes.

Durable and maintenance-free, with excellent performance in breaking strength and freeze-thaw resistance.

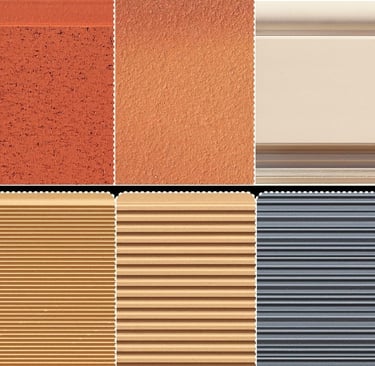

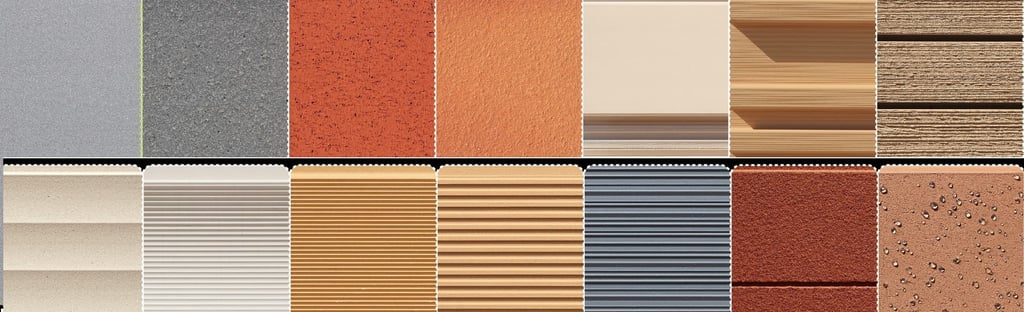

Offers a wide range of formats, profiles, textures, and colors.

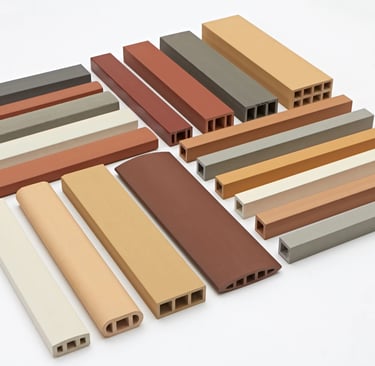

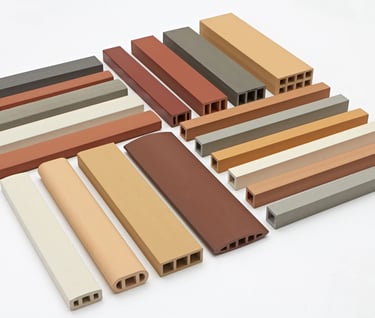

Terracotta Sunscreen

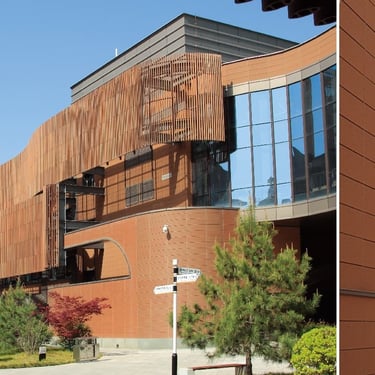

Terracotta Sunscreen, also known as terracotta sunshade, is a product series within Terracotta Cladding. It is often designed for use in front of glass curtain walls, window areas, and passages, providing shading for the building. When used alone, it serves as a distinctive architectural element. Whether on the façade of a building or an interior wall, terracotta fins create a unique visual effect. When combined with terracotta panels, it enhances the aesthetics of corners, parapets, eaves, balconies, and parking buildings, achieving a harmonious and integrated façade.

Benefits:

Fired at high temperatures, Terracotta Sunscreen has excellent flexural strength and freeze-thaw resistance. The product is durable, with colors that can last for hundreds of years.

When properly designed and used, Terracotta Sunscreen provides effective shading while ensuring sufficient indoor lighting, preventing glare, and reducing the building's energy consumption.

Flexible and easy to install, Terracotta Sunscreen is widely applicable in architectural decoration.

With a rich selection of colors and shapes, it allows for creative building facades and lighting effects.
